Home / All / Bathtub Components / Bubble System / Blowers /

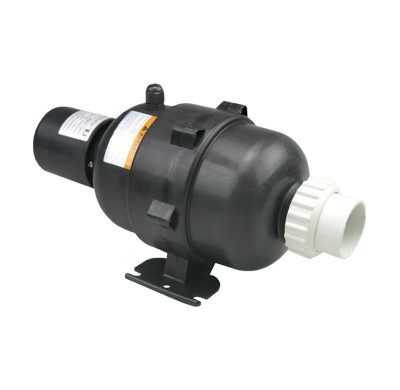

Bathtub Air Blower AP Series | Poweful Air Pump for Premium Bubble Massage Experience | Factory Direct Sale
Bathtub Air Blower AP Series | Poweful Air Pump for Premium Bubble Massage Experience | Factory Direct Sale
200~900W
0.8~2.4m³/min
0.8~2.4m³/min
| Categories | Blowers |
|---|---|
| Brand | Hydrorelax Bathroom industry manufacturer |
| Model | AP200-V2, AP300-V2, AP400X-V2, AP700X-V2, AP400-V2, AP700-V2, AP900-V2, AP200-V1, AP300-V1, AP400-V1, AP700-V1, AP900-V1 |
| Thermal protector: | with thermal protector |
| Insulation rating: | F |
| Medium: | dry air |
| Ambient temperature: | ≤40℃ |
| Maximum working pressure: | 0.1MPa |
| Update Time | Mar 7,2025 |
Detail Information
Bathtub Blower Parameter
Optional air switch, air outlet heater and ultraviolet germicidal light
Bathtub Blower Dimension
*When D in fig.is thread connection, ф 32 and ф 33.5 unions are available.
*When D in fig.is direct connection, ф 32 and ф 33.5 pipes are available.
Bathtub Blower Exploded View
NO. | NAME | |||
1 | Cross raised head screw assembling | |||
2 | Cable head | |||
3 | Union components | |||
4 | Upper part of housting | |||
5 | O-Ring | |||
6 | On shell pads | |||
7 | Fuse | |||
8 | Motor | |||
9 | Pad under the shell | |||
10 | Bottom part of housing | |||
11 | Hexegonal Nut | |||
12 | Air intake filter sponge | |||
13 | Air cover | |||
14 | Cross recessed pan head tappig screws | |||
15 | Handle | |||
16 | Shock pad | |||
Bathtub Blower Installation Diagram
Bathtub Blower Applications
